Platform Base Model

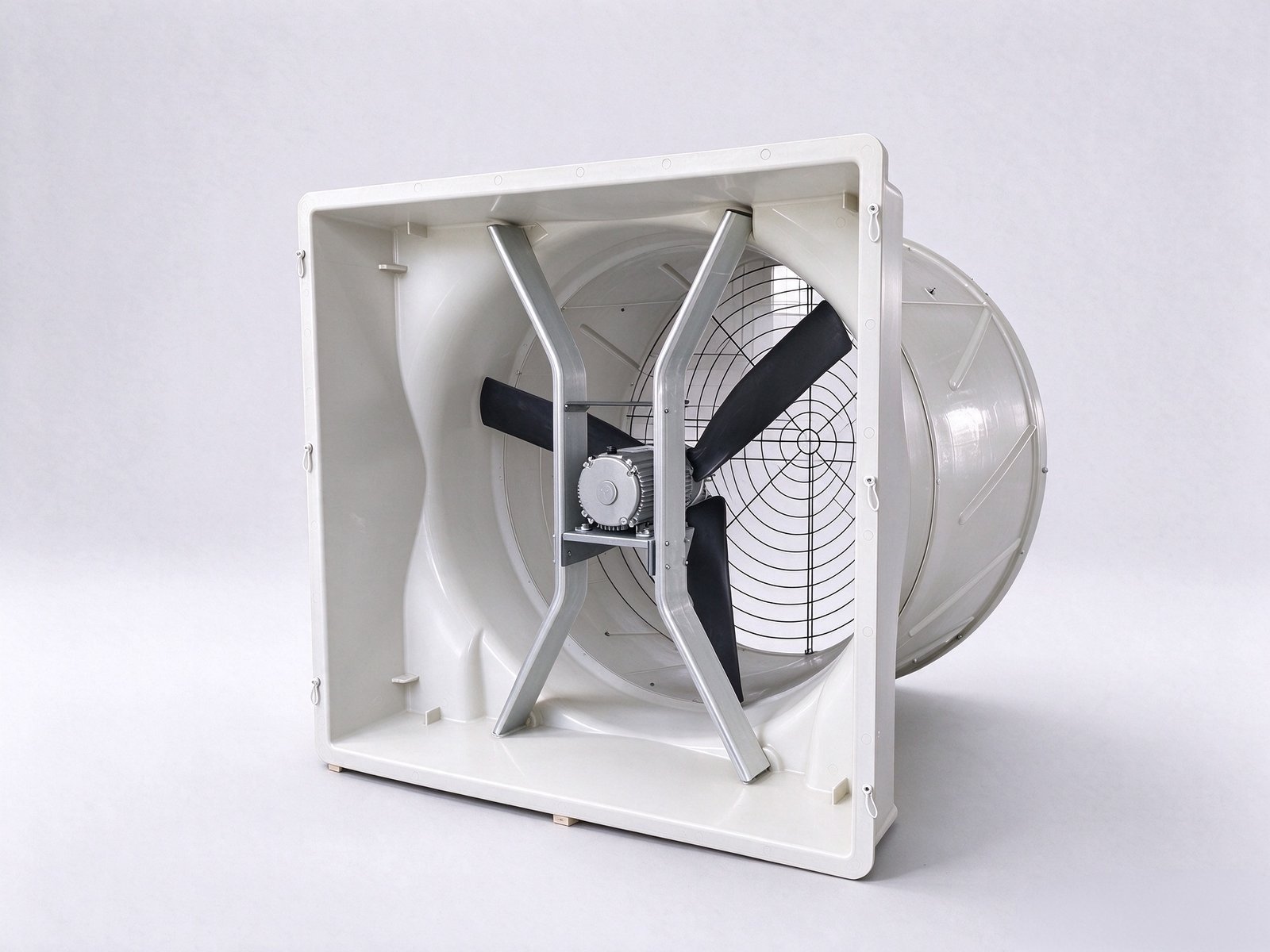

55" AC Fiberglass Exhaust Fan

Designed for harsh livestock environments. This is our standard 55-inch testing platform featuring an SMC molded housing and an industrial-grade AC motor. Ready for project-specific configuration.

Tested Airflow
59,100 m³/h

Static Pressure

@ 0 Pa

Base Power

1.8 kW

Wall Opening

1550 mm

* Data based on standard configuration (JBB55-1.8A-JL-50Hz). Actual performance varies by final specifications.

Factory-Direct OEM & ODM Customization
100% Dynamic Balance & Run-Tested
Global Logistics & Technical Support

Request Quote Check Test Data

Customization Options

Motor & Electrical

Configurable motor brands (HC/LB), efficiency ratings (IE3/IE5), phases, and regional voltages/frequencies.

Appearance & Color

Fiberglass housing colors and logo branding can be tailored to match your corporate identity.

Accessories & Valves

Choose between gravity butterfly valves, PVC louvers, and specific mounting hardware.

Packaging & Shipping

Flexible shipping options including Complete Knock-Down (CKD) parts for maximum container loading.

Tested Performance Basis

Data derived from our laboratory testing of the standard JBB55-1.8A-JL platform.

Airflow Performance Platform Specifications

Static Pressure (Pa)	Airflow (m³/h)	Motor Speed (rpm)	Efficiency (m³/h/W)
0 Pa	59,100	729	32.8
14.7 Pa	56,000	727	29.3
24.51 Pa	53,900	726	26.9
36.76 Pa	51,500	724	24.9
49.02 Pa	48,300	723	22.4
61.27 Pa	44,900	722	20.2
73.52 Pa	41,500	722	18.4
85.78 Pa	38,000	722	16.9
98.03 Pa	31,300	722	14.2
112.74 Pa	23,100	722	10.4

* Tested under standard 380V/50Hz conditions with LB Motor. Custom configurations require re-verification.

Tested Model	JBB55-1.8A-JL-50Hz
Drive Type	Direct Drive (No belt loss)
Default Motor	LB Brand / IE3 AC Motor / IP55 Protection
Default Input	380V / 3-Phase / 50Hz (Customizable)
Housing Material	SMC Molded Fiberglass with Wind Guide
Backdraft Damper	Welded PVC Louvers
Wall Opening Req.	1550 × 1550 mm

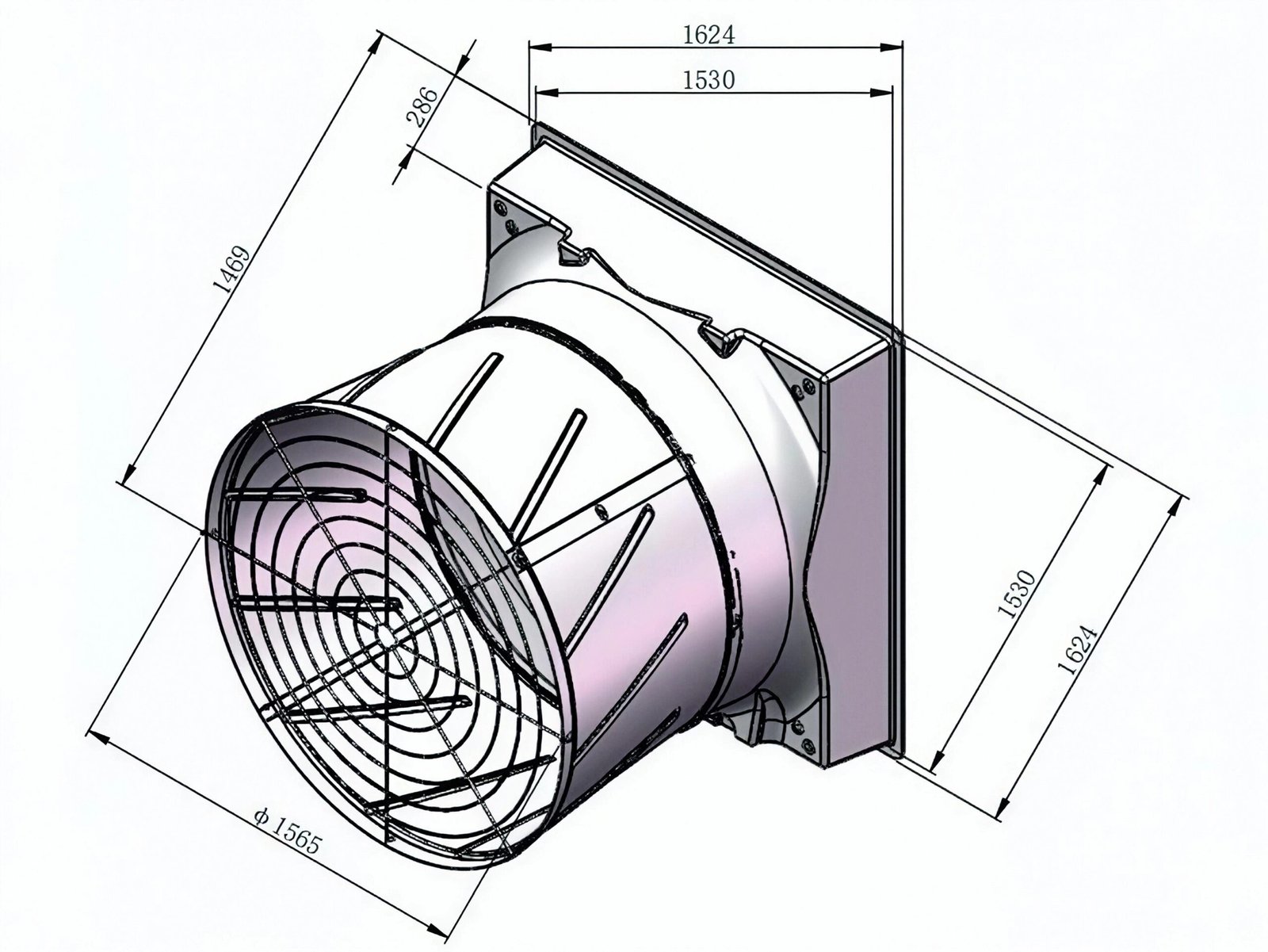

Request CAD Dimensional Drawing →
