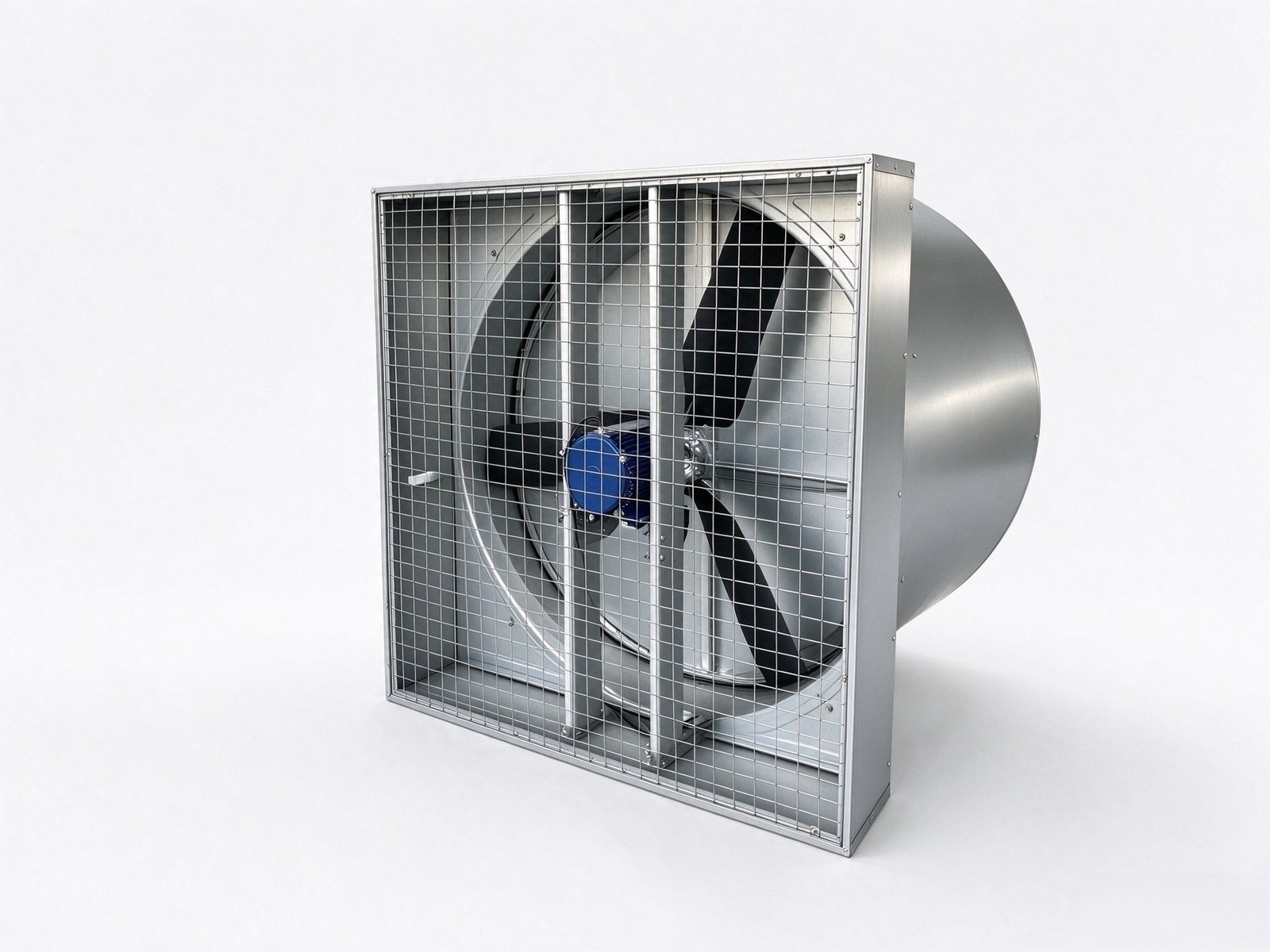

52" Galvanized Cone Fan
Designed for harsh livestock environments. This is our standard 52-inch testing platform featuring a galvanized steel housing, integrated cone, and an industrial-grade AC motor. Ready for project-specific configuration.
- Factory-Direct OEM & ODM Customization
- 100% Dynamic Balance & Run-Tested
- Global Logistics & Technical Support
Customization Options
Motor & Electrical
Configurable motor brands (HC/LB), efficiency ratings (IE3/IE5), phases, and regional voltages/frequencies.
Appearance & Color
Fiberglass housing colors and logo branding can be tailored to match your corporate identity.
Accessories & Valves
Choose between gravity butterfly valves, PVC louvers, and specific mounting hardware.
Packaging & Shipping
Flexible shipping options including Complete Knock-Down (CKD) parts for maximum container loading.
Tested Performance Basis
Data derived from our laboratory testing of the standard JXH52-1.5A-JJ platform.
| Static Pressure (Pa) | Airflow (m³/h) | Motor Speed (rpm) | Efficiency (m³/h/W) |
|---|---|---|---|
| 0 Pa | 52,100 | 705 | 27.0 |
| 12.25 Pa | 50,000 | 702 | 24.9 |
| 24.51 Pa | 47,900 | 699 | 23.2 |
| 34.31 Pa | 44,600 | 697 | 20.9 |
| 49.02 Pa | 41,200 | 695 | 19.0 |
| 63.72 Pa | 37,800 | 695 | 17.2 |
| 73.52 Pa | 35,600 | 695 | 16.3 |
| 85.78 Pa | 31,300 | 693 | 14.4 |
| 98.03 Pa | 26,900 | 692 | 12.3 |
| 110.29 Pa | 21,100 | 690 | 9.5 |
| Tested Model | JXH52-1.5A-JJ-50Hz |
|---|---|
| Drive Type | Direct Drive (No belt loss) |
| Default Motor | JZ Brand / IE3 AC Motor / IP55 Protection |
| Default Input | 380V / 3-Phase / 50Hz (Customizable) |
| Housing Material | Heavy-Duty Galvanized Steel (275g/m²) |
| Backdraft Damper | Gravity Butterfly Valve |

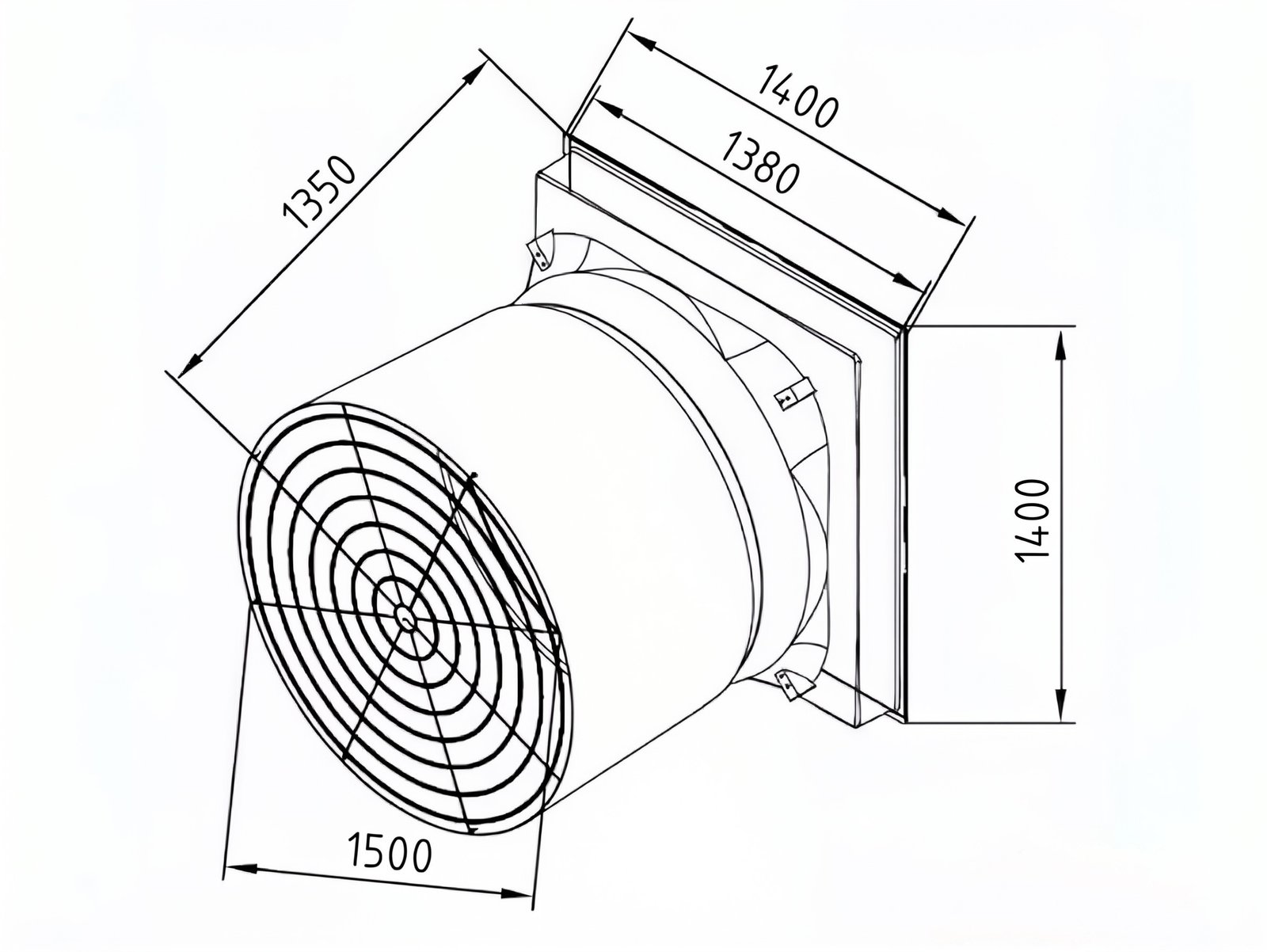

| Wall Opening Req. | 1400 × 1400 mm |
