Platform Base Model

24" AC Fiberglass Exhaust Fan

Designed for harsh livestock environments. This is our standard 24-inch testing platform featuring an SMC molded housing and an industrial-grade AC motor. Ready for project-specific configuration.

Tested Airflow
13,193 m³/h

Static Pressure

@ 0 Pa

Base Power

0.55 kW

Wall Opening

750 mm

* Data based on standard configuration (JBB24-0.55A-JL-50Hz). Actual performance varies by final specifications.

Factory-Direct OEM & ODM Customization
100% Dynamic Balance & Run-Tested
Global Logistics & Technical Support

Request Quote Check Test Data

Customization Options

Motor & Electrical

Configurable motor brands (HC/LB), efficiency ratings (IE3/IE5), phases, and regional voltages/frequencies.

Appearance & Color

Fiberglass housing colors and logo branding can be tailored to match your corporate identity.

Accessories & Valves

Choose between gravity butterfly valves, PVC louvers, and specific mounting hardware.

Packaging & Shipping

Flexible shipping options including Complete Knock-Down (CKD) parts for maximum container loading.

Tested Performance Basis

Data derived from our laboratory testing of the standard JBB24-0.55A-JL platform.

Airflow Performance Platform Specifications

Static Pressure (Pa)	Airflow (m³/h)	Motor Speed (rpm)	Efficiency (m³/h/W)
0 Pa	13,193	1452	22.04
12.6 Pa	12,626	1449	20.27
24.9 Pa	12,044	1447	18.69
37.5 Pa	11,581	1444	17.41
49.9 Pa	11,106	1441	16.17
62.5 Pa	10,529	1439	14.76
75.0 Pa	9,936	1436	13.43
87.6 Pa	6,886	1436	9.40
99.9 Pa	6,504	1428	8.25
112.4 Pa	5,847	1415	6.48
125.0 Pa	5,426	1403	5.56

* Tested under standard 380V/50Hz conditions with LB Motor. Custom configurations require re-verification.

Tested Model	JBB24-0.55A-JL-50Hz
Drive Type	Direct Drive (No belt loss)
Default Motor	LB Brand / IE3 AC Motor / IP56 Protection
Default Input	380V / 3-Phase / 50Hz (Customizable)
Housing Material	SMC Molded Fiberglass with Wind Guide

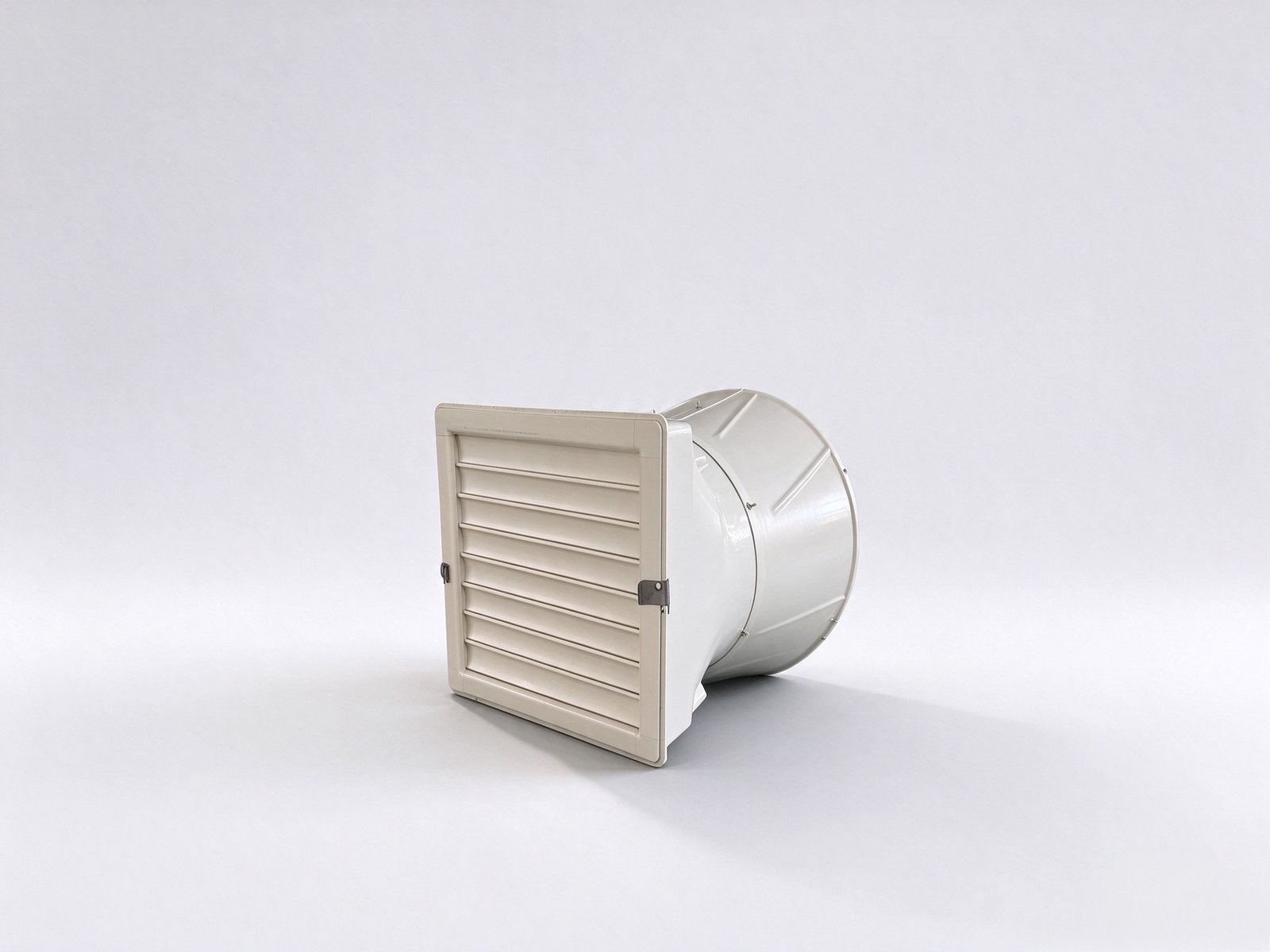

Backdraft Damper	Welded PVC Louvers

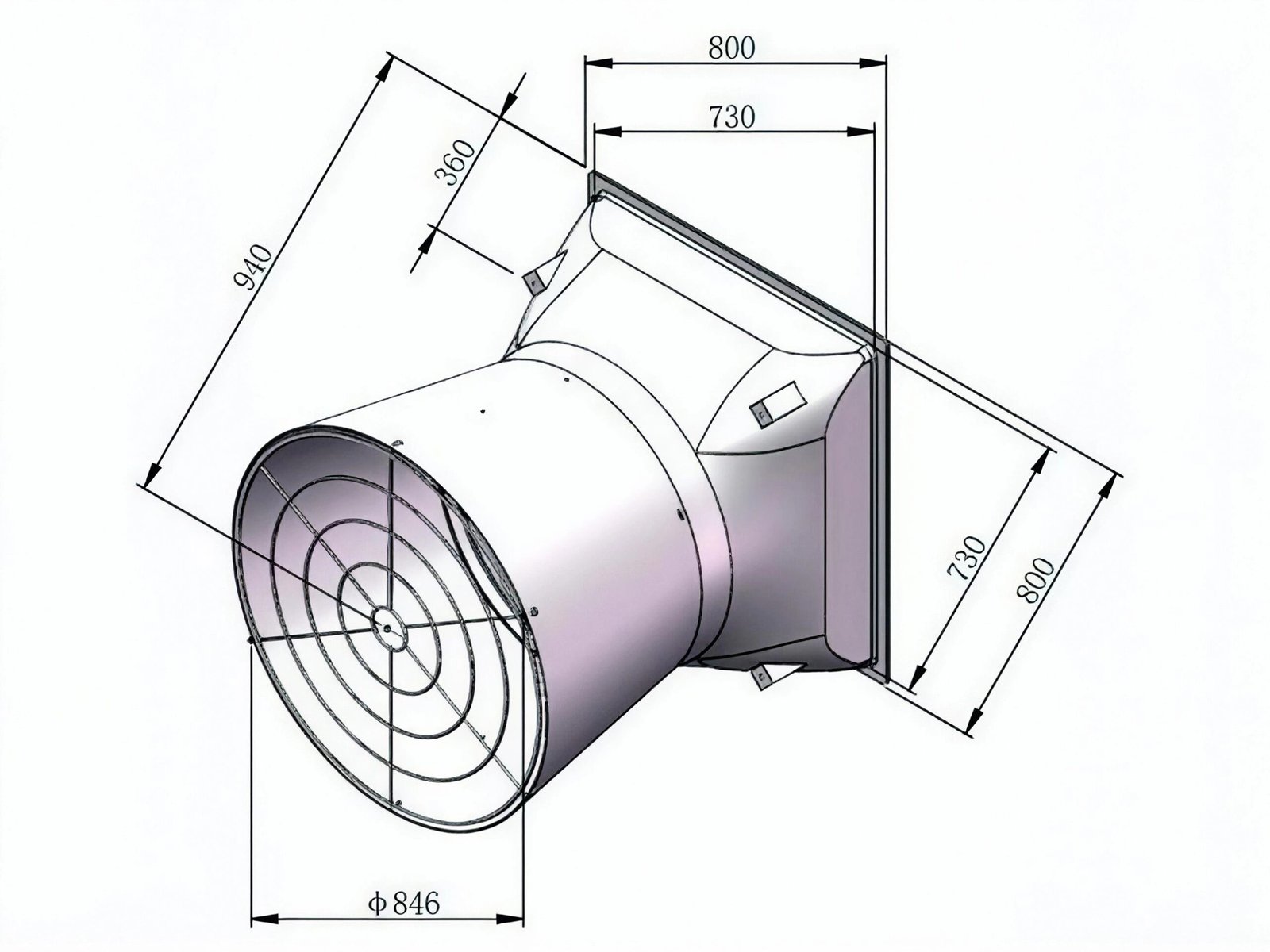

Wall Opening Req.	750 × 750 mm

Request CAD Dimensional Drawing →

Project Inquiry

Tell us what you need to ventilate.

Get a customized quote for your livestock ventilation project from HerdSpec engineers. We ship worldwide with full technical support.

Precise Motor Matching Tell us your local voltage/frequency, we configure the exact EC or AC drive.
Global Logistics Support From sample orders to full 40HQ containers, we handle secure export packaging.
Fast Engineering Response Detailed datasheets and pricing provided within 24 hours.
WhatsApp Support +86 17685857827
